ATBeX
ATBeX provides layer 2 connectivity within and between our data centers, partner data centers, and our customer networks.
As a connectivity platform, it supports customers’ business expansion by enabling efficient connection to services such as cloud, communication, IX, and IoT services.

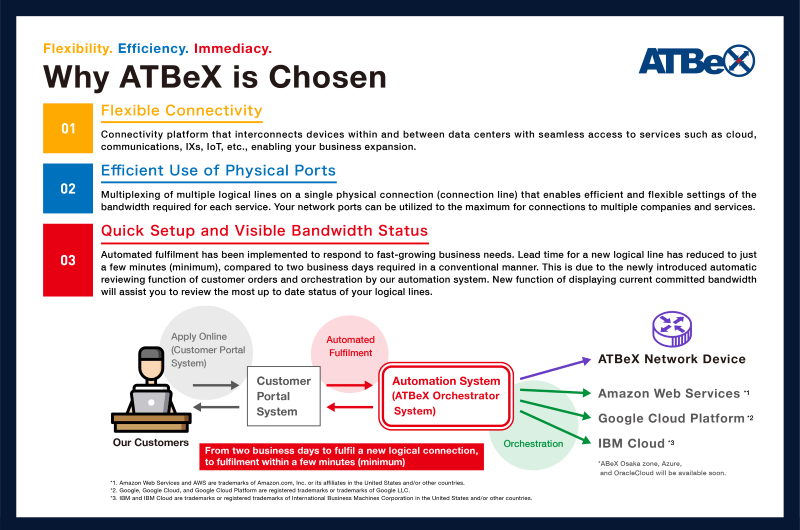

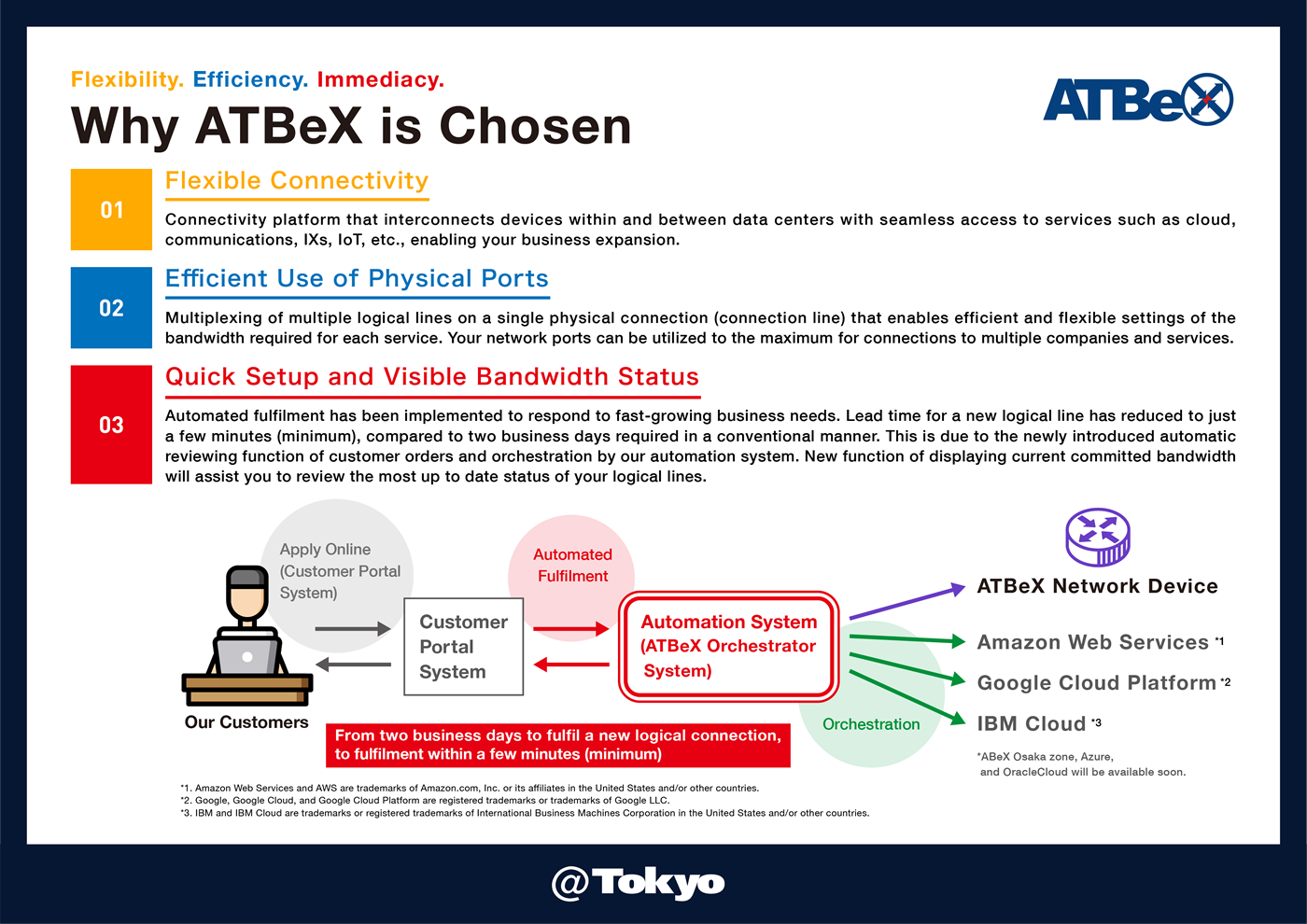

Key Features
- Enables access to multiple providers and services via a single physical port/line
- Provides connection to a wide range of services such as cloud and Internet
- Has the ability to be used as an effective cross-connectivity platform between enterprise systems
Connection Configuration

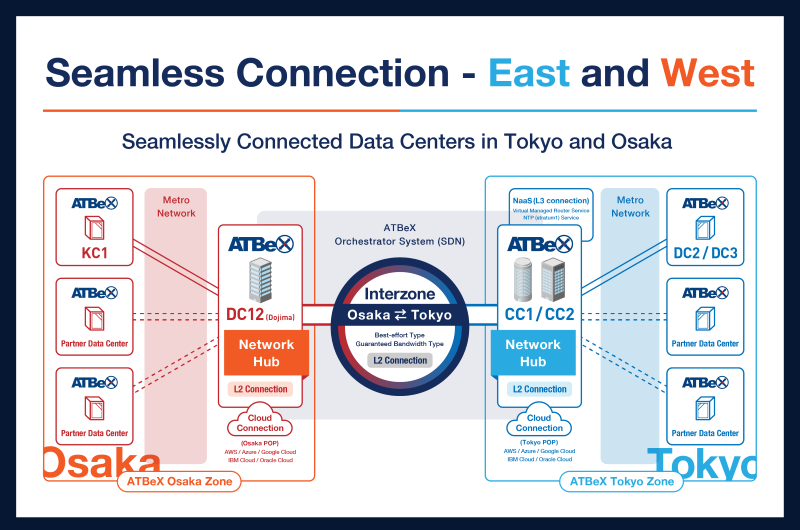

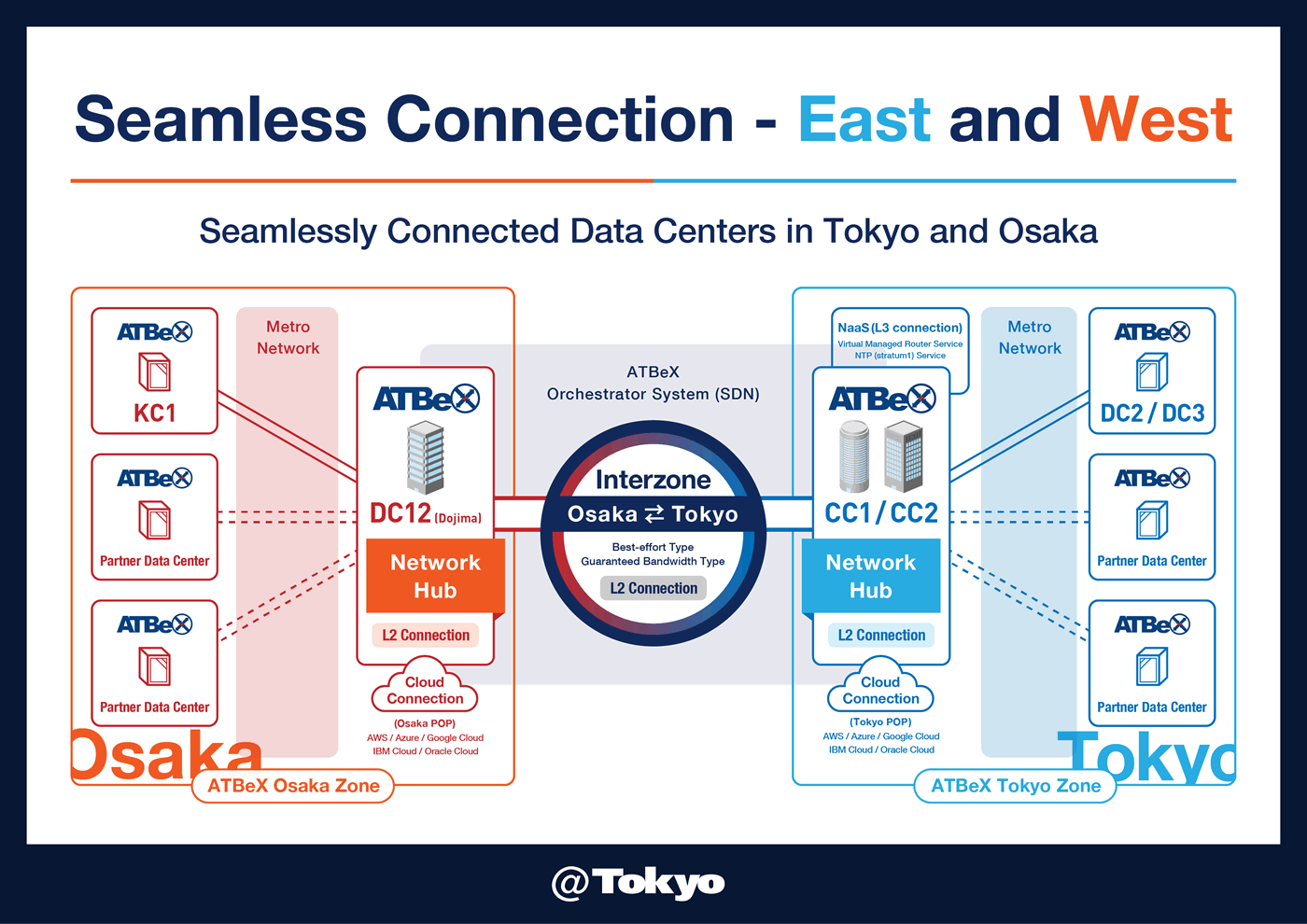

In order to use ATBeX, it is required to execute a contract for ① ATBeX physical connection, and ② ATBeX logical connection. In the case of using a logical connection for both the Tokyo and Osaka zones, a contract for ③ ATBeX relay connection is also required.
ATBeX physical connection
A physical connection that connects space used by our customers with our ATBeX system (ATBeX port + optical-fiber cable)
| Basic service | 1G port | 10G port | 40G port | 100G port |
|---|---|---|---|---|
| Interface type | 1000BASE-LX | 10GBASE-LR | 40GBASE-LR4 | 100GBASE-LR4 |
| Communication speed | 1Gbps | 10Gbps | 40Gbps | 100Gbps |
| Communication mode | Auto Negotiation | Auto Negotiation | Auto Negotiation | Auto Negotiation |
| Cable type to connect customer machine | 2 wires of single-mode optical fiber | 2 wires of single-mode optical fiber | 2 wires of single-mode optical fiber | 2 wires of single-mode optical fiber |
| Cable shape to connect customer machine | SC/LC connector • Can be specified to match customer machine. |
SC/LC connector • Can be specified to match customer machine. |
SC/LC connector • Can be specified to match customer machine. |
SC/LC connector • Can be specified to match customer machine. |
| VLAN protocol | With VLAN tag (based on IEEE802.1Q)/without tag | With VLAN tag (based on IEEE802.1Q)/without tag | With VLAN tag (based on IEEE802.1Q)/without tag | With VLAN tag (based on IEEE802.1Q)/without tag |
| Maximum number of VLANs | With VLAN tag: 4,094Without tag: 1 | With VLAN tag: 4,094Without tag: 1 | With VLAN tag: 4,094Without tag: 1 | With VLAN tag: 4,094Without tag: 1 |
- Multiple logical connections can be used with one physical connection.
- It is not possible to accommodate a logical connection bandwidth that exceeds the physical connection bandwidth (total logical connection bandwidth value must be less than physical connection bandwidth).
ATBeX Logical Connection
Logical connection (VLAN) that connects customer networks over the ATBeX physical connection and ATBeX network.
Menu
ATBeX ServiceLink(Network link to use a service)
• Provides layer 2 connection to service provider on ATBeX.
• By using ATBeX, it is possible to access cloud, connection, IX, and IoT service, etc.
- A range of services are accessible with one physical connection
- Required bandwidth can be set per service

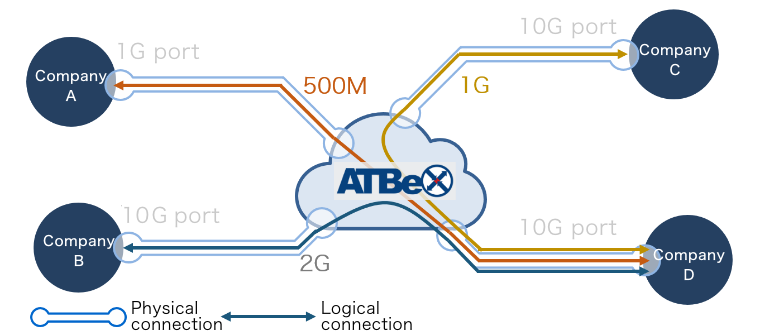

ATBeX PartnerLink (Connection between customer's racks)
• Logical connections can be set between customers who are connected to ATBeX. Either 1:1 connection, or 1:multiple connection can be made.
• Provides mutual connectivity within data centers, affording collaboration opportunities between enterprise systems, and connections between rooms.
Examples of how connections can be made using ATBeX
